Feature:

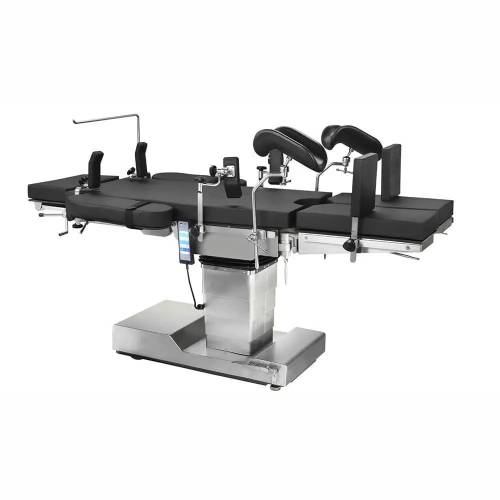

- TRDT-07FM With longitudinally movement function is suit for C-arm X-ray
- The table top can slide is suit for C-arm examination
- Guide rail, base shell and column shell all are made of stainless steel
- With built-in Auto-Charge device; It can keep the table being used when emergency power shut off.
- Electric motors Timotion brand.
Electric C-arm Operation Table Main Technical Parameter：
| Table Height Range | 700～1000mm |
| Length And Width | 2000mm X 500mm |
| Lateral Tilt (Left/Right） | 20° |
| Back Section Up | 75° |
| Head Section Up/Down | 30°/90° |
| Leg Section Down | 90°, Open 90° |
| Waist Board Lifting | 110 Mm |
| Longitudinally Movement | 400mm |
| Power Supply | ～220V±10%, 50/60Hz |
| Battery | (12V X2) X2 |
Max Load Up To 250KGS
