Specifications:

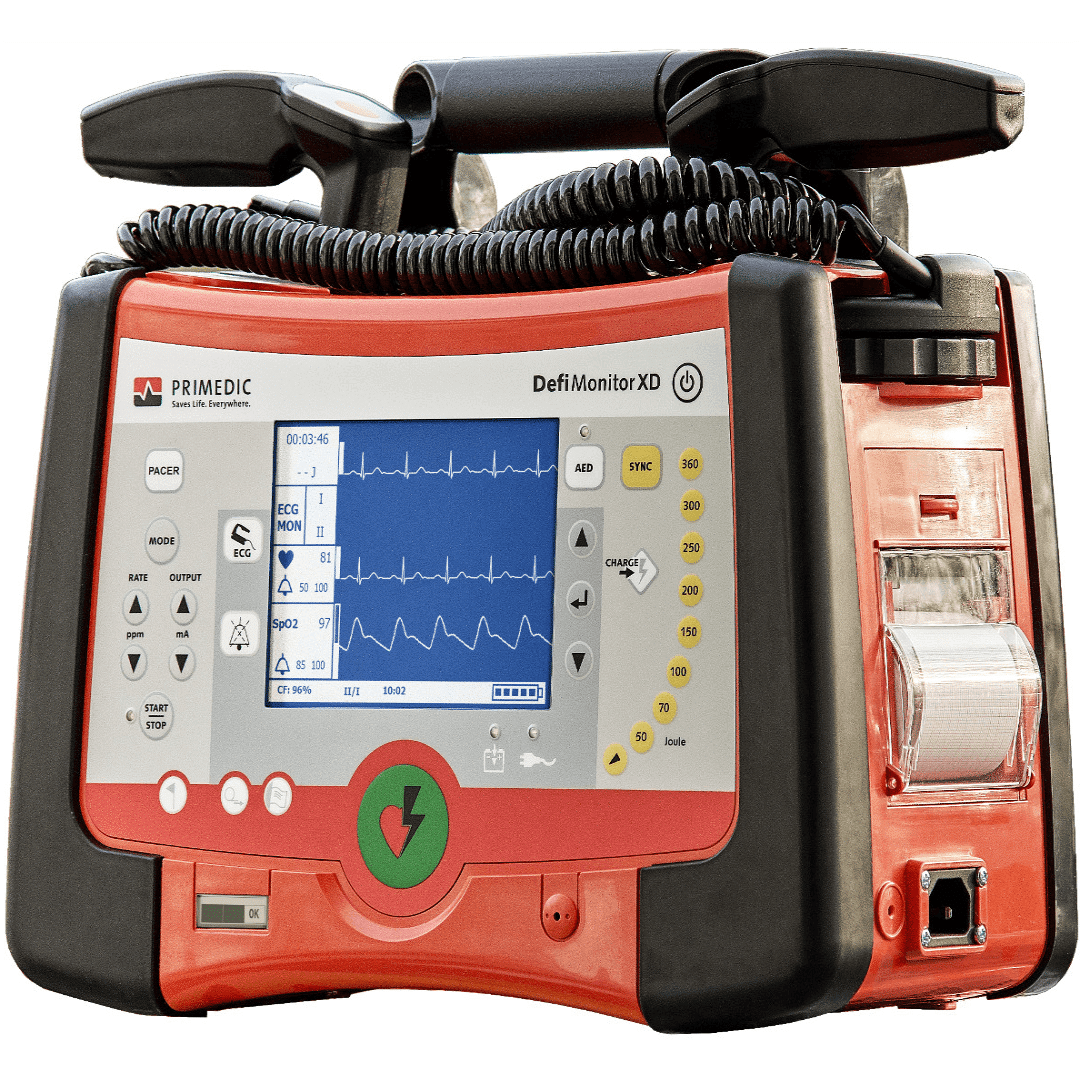

The DefiMonitor XD combines a compact and proven design with an intuitive operating concept into a multifunctional solution for emergencies. The specially developed mounting and charging concept enables the DefiMonitor XD to be used in a wide range of applications – in the practice, in the clinic, in emergency medicine. Its simple handling makes it the ideal companion for professional users all over the world, even in extreme situations.
- manuel defibrillation
- SpO2
- external pacemaker
- 6 – Lead ECG
- AED-Mode
- Printer
All advantages at a glance
Manual mode
- with energy selection and synchronous defibrillation / cardioversion (manual switching) up to 360 joules (biphasic)
6-lead ECG
- with free selection of derivations (Abl. I, II, III, aVE, aVL, aVF) and synchronous display of two curves on the monitor
Printer
- for automatic / manual printout of curves, values, events
illuminated monitor
- For displaying two ECG curves, vital signs, alarm limits, duration of use, energy levels, mode, pacer, number of shocks
Pacemaker
- External tranthorocal pacemaker for use with multifunction electrodes
Pulse oximetry
- SpO2 measurement via finger sensor with Nellcor technology
- Defibrillator / Monitor with illuminated LCD-monitor,95 x 72 mm (5,7″)
- Hardpaddles for adult and pediatric (pediatric size integrated), alternatively the use of adhesive pads / multifunction electrodes (SavePads Connect) possible
- 6-lead-ECG with free choice of leads (I, II, III, aVR, aVL, aVF) and synchronous display of two curves on the monitor
- Alarm limits (adjustable) for monitoring
- Energy up to 360 J (biphasic)
- Energy levels: 2-5-7-10-20-30-50-70-100-150-200-250-300-360 Joule
- Direct and synchronous (cardioversion) energy delivery
- External, transthoracic pacemaker
- Integrated printer for the documentation of curves, vital signs, events; manual and automatic printing
- SpO2-measurement with Nellcor technology
- Metronome for the correct pressure frequency during CPR in AED mode
- Automated adjustment of the energy delivered to each patient with escalating energy delivery up to 360 J in the event of multiple defibrillation (in AED-mode)
- Automatic daily self-tests with status display for function and battery
- Documentation of the application data on a removable memory card
- LiFePO4- battery with up to 5 h monitoring or 95 shocks at 360 J / alternatively mains operation possible
- Weight only ca. 5,3 kg (without battery)
- Made in Germany
